8x16 12G SDI 4K Re-clocking Distro Box (Pre-order)

8x16 12G SDI 4K Re-clocking Distro Box

Powered by FreakshowHD

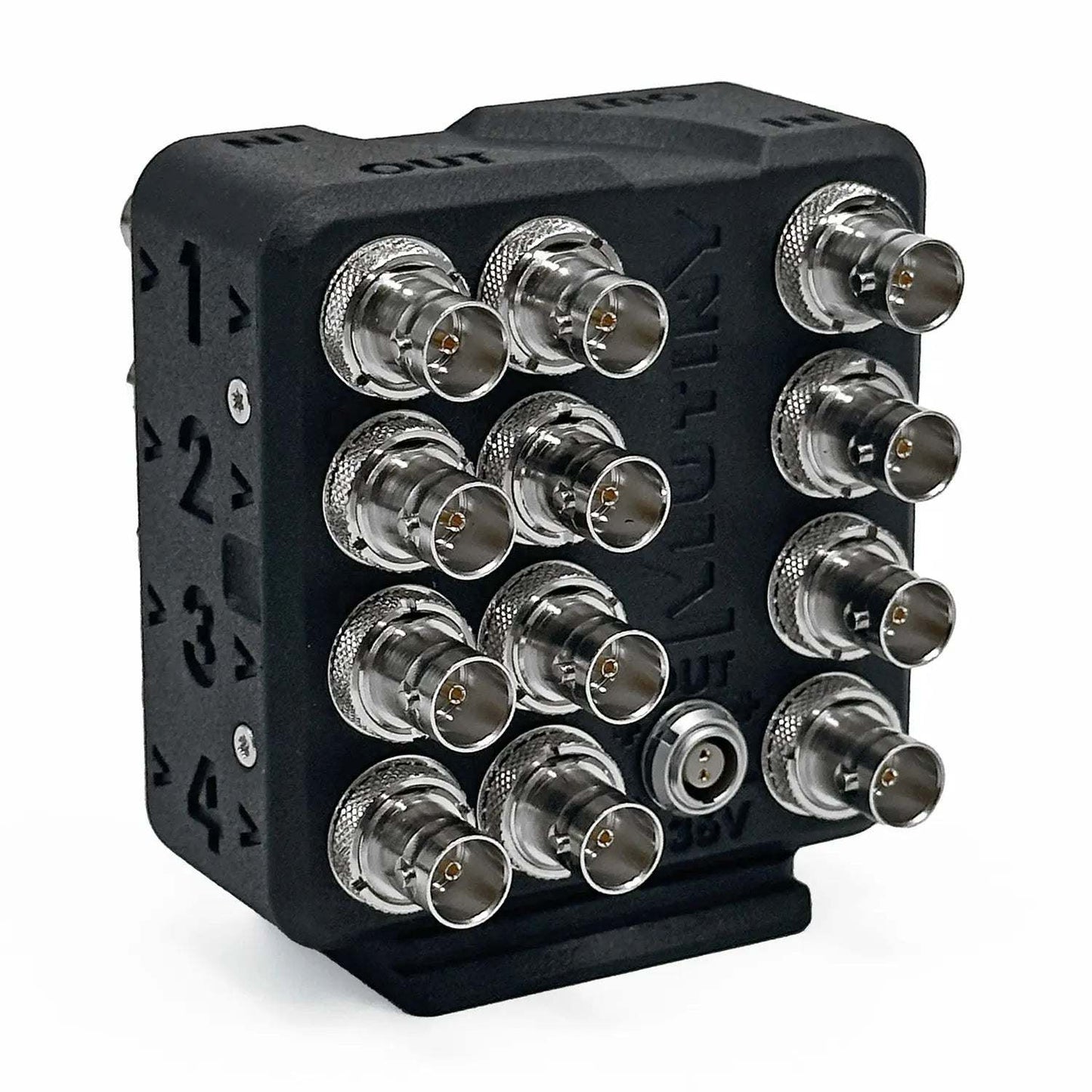

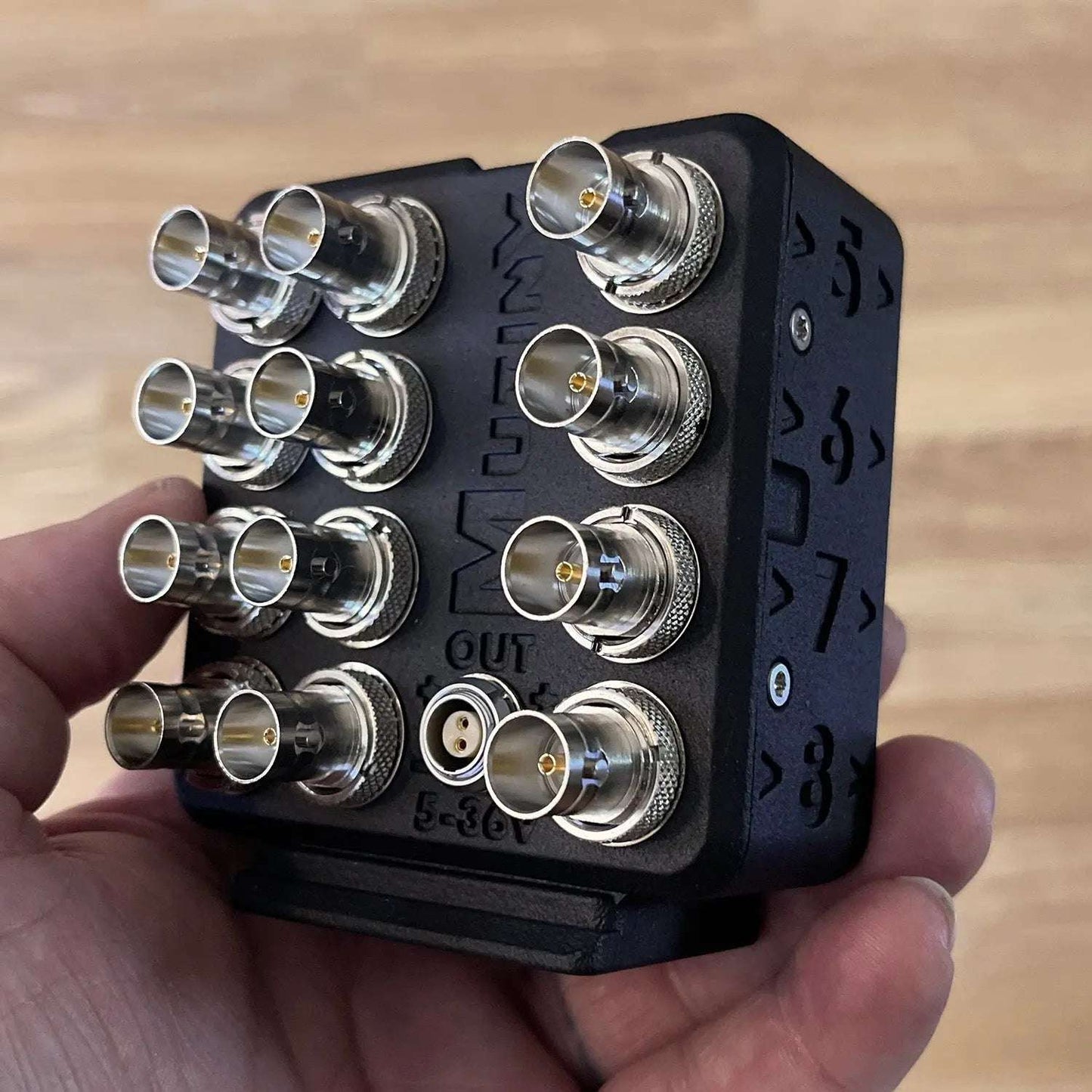

The MUTINY 8x16 is a compact 12G 4K SDI distribution box for up to cameras or signal feeds and provides two channels of output per input.  Perfect for DIT carts, each box has four inputs and eight outputs and 1x power connector per side. It features a built in Arca style foot for mounting.  This box is great for when you need to feed multiple cameras or wireless feeds into a switcher,  monitors or other devices at the same time.  The MUTINY 8x16 is built with genuine FreakshowHD 12G SDI 4K boards.  Why bother with a bunch of throw down 1:2 DA's when you can have 8 together in a compact form?  The 8x16 is the answer with a single source of power.

(NOTE: This is built to order.  Once order is placed it may take up to 14 days to complete)

• Video Formats
  • 4K 12G-SDI, Ultra 4K 6G-SDI, 3G-SDI, 1.5G-SDI, 270Mb-SDI.
  • Meets and exceeds SMPTE-424, SMPTE-292, SMPTE-259
•  Inputs
  • 8x12G/ 6G/ 3G/ 1.5G/ 270Mb input channels (4 per side)
  • Auto-selectable SDI
  • 1xBNC
  • 1x 2pin 0B female connector 5V-36V
•  Outputs
  • 16x 12G/ 6G/ 3G/ 1.5G/ 270Mb outputs (2 per input channel)
  • equalization and re-clocking
  • 1x 2pin 0B female power passthrough connector 5V-36V (voltage in = voltage out)

•  Cable Re-clocking and Equalization
  • (all with Belden 1694A - divide by half for Belden 1505): 75 meters (246ft) at 12G, 100 meters (328ft) at 6G, 220 meters (722ft) at 3G, 265 meters (870ft) at HD, 530 meters (1740ft) at SD
•  Input Return Loss
  • -8dB at 12G, -9dB at 6G, -13dB at 3G, -18dB HD/SD
• Output Return Loss
  • -6dB at 12G, -8.5dB at 6G, -15dB at 3G, -23dB at HD/SD
